Description
| Time to market | 2024.06 |
| Level | Mini car |
| Type of energy | Pure electric |
| BEV CLTC range (km) | 205/301 |
| Official 0-50km/h acceleration (s) | 6.1/6.2 |
| Maximum speed (km/h) | 101 |
| Body Structure | 3-doors, 4-seats mini car |
Changan Lumin Color

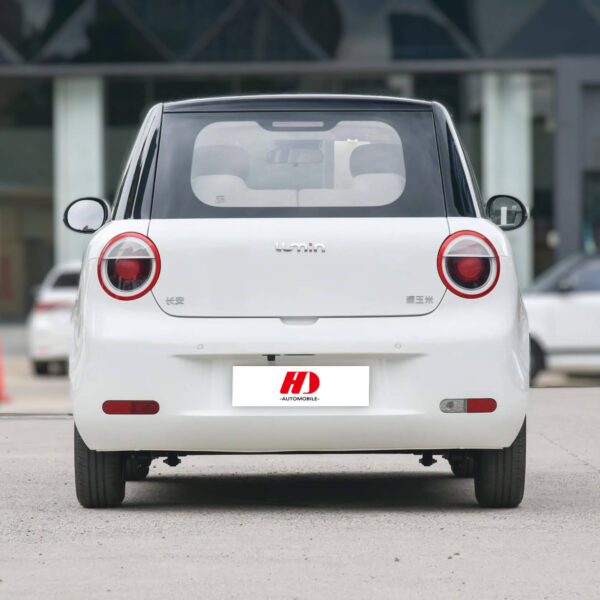

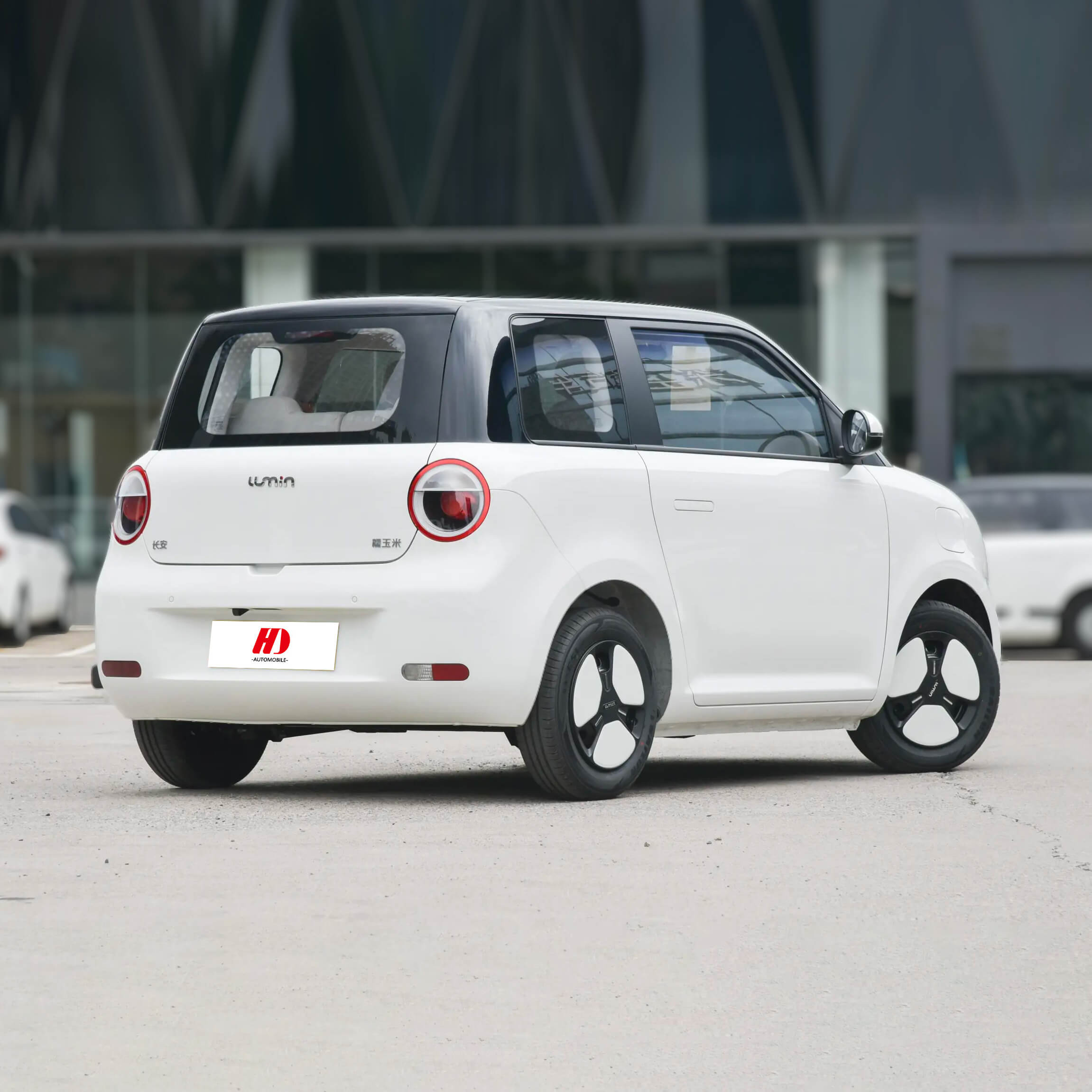

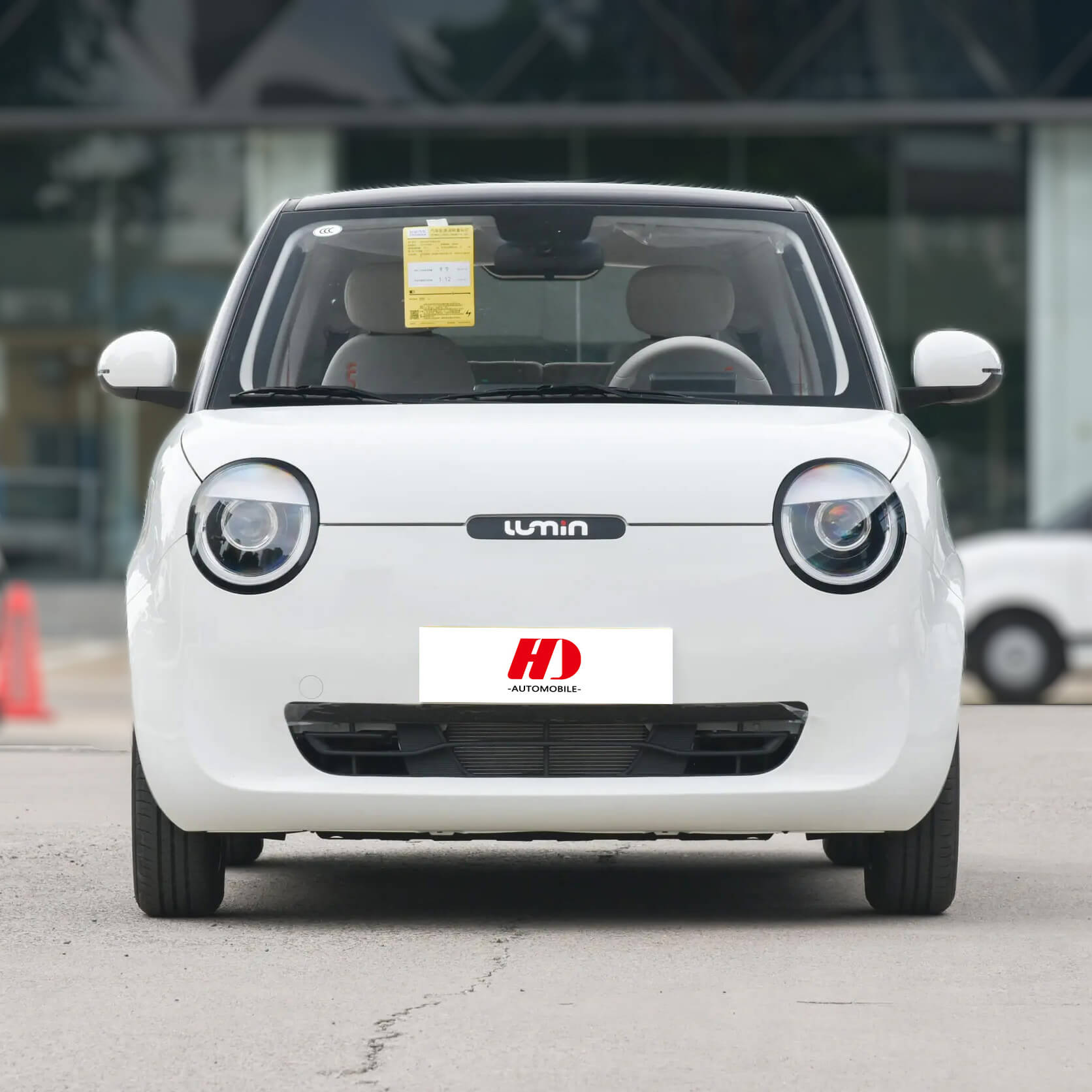

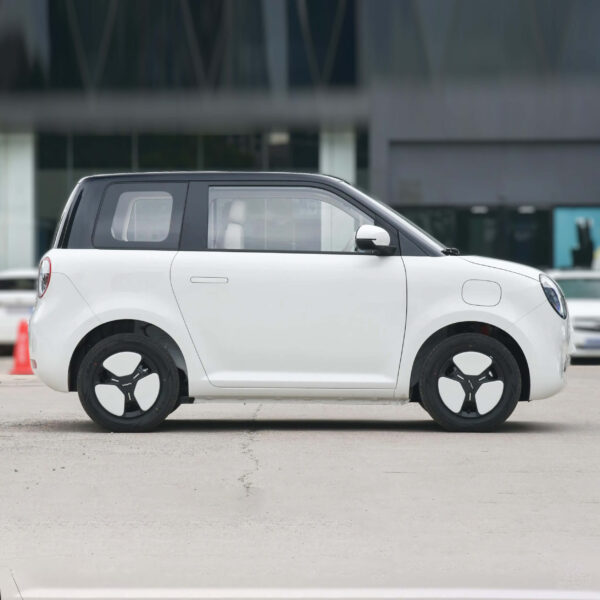

Changan Lumin Appearance Details
Changan Lumin Interior Details
Changan Lumin Parameter configuration
| Model | Changan Lumin 2024 205km Orange Wind Edition | Changan Lumin 2024 205km Sailing Edition | Changan Lumin 2024 301km Orange Wind Edition | Changan Lumin 2024 301km Sailing Edition |
| Level | Mini car | Mini car | Mini car | Mini car |
| Energy type | Pure electric | Pure electric | Pure electric | Pure electric |
| Time to market | 2024.06 | 2024.06 | 2024.06 | 2024.06 |
| CLTC pure electric cruising range (km) | 205 | 205 | 301 | 301 |
| Battery fast charge time (hours) | 0.58 | 0.58 | 0.58 | 0.58 |
| Battery slow charge time (hours) | 6.5 | 6.5 | 10 | 10 |
| Battery fast charge capacity range (%) | 30-80 | 30-80 | 30-80 | 30-80 |
| Maximum power (kW) | 35 | 35 | 35 | 35 |
| Body structure | 3-door 4-seat hatchback | 3-door 4-seat hatchback | 3-door 4-seat hatchback | 3-door 4-seat hatchback |
| Electric motor (Ps) | 48 | 48 | 48 | 48 |
| Length * width * height (mm) | 3270*1700*1545 | 3270*1700*1545 | 3270*1700*1545 | 3270*1700*1545 |
| Official 0-50km/h acceleration (s) | 6.1 | 6.1 | 6.2 | 6.2 |
| Maximum speed (km/h) | 101 | 101 | 101 | 101 |
| Electric energy equivalent fuel consumption (L/100km) | 1.12 | 1.12 | 1.21 | 1.21 |
| Curb weight (kg) | 870 | 870 | 930 | 930 |
| Maximum fully loaded weight (kg) | 1170 | 1170 | 1230 | 1230 |
| Wheelbase (mm) | 1980 | 1980 | 1980 | 1980 |
| Front track (mm) | 1470 | 1470 | 1470 | 1470 |
| Rear track (mm) | 1476 | 1476 | 1476 | 1476 |
| Minimum ground clearance when fully loaded (mm) | 125 | 125 | 125 | 125 |
| Minimum ground clearance when unloaded (mm) | 150 | 150 | 150 | 150 |
| Approach angle (°) | 21 | 21 | 21 | 21 |
| Departure angle (°) | 28 | 28 | 28 | 28 |
| Body structure | Hatchback | Hatchback | Hatchback | Hatchback |
| Door opening method | Sliding door | Sliding door | Sliding door | Sliding door |
| Number of doors (pieces) | 3 | 3 | 3 | 3 |
| Number of seats (pieces) | 4 | 4 | 4 | 4 |
| Trunk volume (L) | 104 | 104 | 104 | 104 |
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 35 | 35 | 35 | 35 |
| Total motor horsepower (Ps) | 48 | 48 | 48 | 48 |
| Maximum front motor power (kW) | 35 | 35 | 35 | 35 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Front | Front | Front | Front |
| Battery type | LiFePO4 battery | LiFePO4 battery | LiFePO4 battery, | LiFePO4 battery, |
| Battery cooling method | Air cooling | Air cooling | Air cooling | Air cooling |
| Battery energy (kWh) | 17.65 | 17.65 | 28.08 | 28.08 |
| Battery energy density (Wh/kg) | 125 | 125 | 130 | 130 |
| Power consumption per 100 kilometers (kwh/100km) | 9.9 | 9.9 | 10.7 | 10.7 |
| Fast charging function | Support | Support | Support | Support |
| Battery fast charging time (hours) | 0.58 | 0.58 | 0.58 | 0.58 |
| Battery slow charging time (hours) | 6.5 | 6.5 | 10 | 10 |
| Battery fast charge capacity range (%) | 30-80 | 30-80 | 30-80 | 30-80 |
| Slow charge port location | Left front side of the vehicle | Left front side of the vehicle | Left front side of the vehicle | Left front side of the vehicle |
| Fast charge port location | Right front side of the vehicle | Right front side of the vehicle | Right front side of the vehicle | Right front side of the vehicle |
| Abbreviation | Single-speed gearbox for electric vehicles | Single-speed gearbox for electric vehicles | Single-speed gearbox for electric vehicles | Single-speed gearbox for electric vehicles |
| Number of gears | 1 | 1 | 1 | 1 |
| Transmission type | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Drive mode | Front front drive | Front front drive | Front front drive | Front front drive |
| Front suspension type | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension |
| Rear suspension type | Trailing arm non-independent suspension | Trailing arm non-independent suspension | Trailing arm non-independent suspension | Trailing arm non-independent suspension |
| Power assist type | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Body structure | Load-bearing type | Load-bearing type | Load-bearing type | Load-bearing type |
| Front brake type | Disc type | Disc type | Disc type | Disc type |
| Rear brake type | Disc type | Disc type(optional) | Disc type | Disc type(optional) |
| Drum type (optional) | Drum type | Drum type (optional) | Drum type | |
| Parking brake type | Electronic parking brake | Electronic parking brake (optional) | Electronic parking brake | Electronic parking brake (optional) |
| Handbrake (optional) | Handbrake | Handbrake (optional) | Handbrake | |
| Front tire specifications | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 |
| Rear tire specifications | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 |
| Driver/passenger airbags | Driver / Auxiliary | Driver / Auxiliary | Driver / Auxiliary | Driver / Auxiliary |
| ABS anti-lock brakes | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC, etc.) | ● | ● | ● | ● |
| Tire pressure monitoring function | Tire pressure alarm | Tire pressure alarm | Tire pressure alarm | Tire pressure alarm |
| All belts unfastened reminder | Driver seat | Driver seat | Driver seat | Driver seat |
| ISOFIX child seat interface | ● | ● | ● | ● |
| Wheel material | Steel | Steel | Steel | Steel |
| Central lock inside the car | ● | ● | ● | ● |
| Key type | Remote control key | Remote control key | Remote control key | Remote control key |
| Keyless start system | —— | ● | —— | ● |
| Keyless entry function | —— | ● | —— | ● |
| Hidden electric door handles | —— | ● | —— | ● |
| Remote start function | ● | ● | ● | ● |
| Battery preheating | ● | ● | ● | ● |
| Rear seat folding mode | Proportional folding | Proportional folding | Proportional folding | Proportional folding |
| Front/rear center armrest | Front / rear none | —— | Front / rear none | —— |
| Number of speakers | 2 speakers | 2 speakers | 2 speakers | 2 speakers |
| Air conditioning temperature control method | Manual air conditioning | Manual air conditioning | Manual air conditioning | Manual air conditioning |
